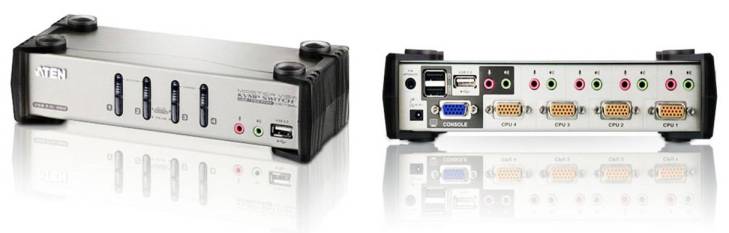

Aten CS1734B 4-Port USB 2.0 KVMP™ Switch with OSD

The CS1734B is 4-port KVM switchcombinedwith a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse.

Features

• 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio

• One console controls four computers and two additional USB devices

• 2-port USB 2.0 hub built in

• USB 2.0 compliant

• Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations

• Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems

• Console audio ports on front panel for easy access - ideal for IP phone users

• Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse

• Independent switching of KVM, USB, and Audio focus

• Superior video quality; 2048 x 1536; DDC2B

• Supports widescreen resolutions

• Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse

• Multiplatform support - Windows , Mac, and Sun

• Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice

• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

• Complete keyboard emulation for error-free booting

• Sun/Mac keyboard support and emulation*

• AutoScan Mode for monitoring all computers

• LED Display for easy status monitoring

• Easy installation nosoftwarerequired

• Firmware upgradeable

Specifications

Computer Connections			4
Port Selection			OSD; Hotkey; Pushbutton; Mouse
Connectors	Console Port	Keyboard	1 x USB Type A Female (Black)
		Video	1 x HDB-15 Female (Blue)
		Mouse	1 x USB Type A Female (Black)
		Speaker	2 x Mini Stereo Jack Female (Green)
		Mic.	2 x Mini Stereo Jack Female (Pink)
	KVM Port	Keyboard	4 x SPHD-15 Female (Yellow)
		Video
		Mouse
		Speaker	4 x Mini Stereo Jack Female (Green)
		Mic.	4 x Mini Stereo Jack Female (Pink)
	Firmware upgrade		1 x 4-conductor 3.5mm Jack (Black)
	Power		1 x DC Jack
	USB Hub		2 x USB Type A Female (White)
Switches	Selected		4 x Pushbutton
LEDs	On Line/ Selected		4 (Orange)
	USB Link		4 (Green)
Emulation	Keyboard / Mouse		PS/2; USB
Video			2048 x 1536 @ 60Hz; DDC2B
Scan Interval			1-255 seconds (Default: 5 sec.)
Power Consumption			DC5.3V, 3.4W
Environment	Operating Temp.		0-50C
	Storage Temp.		-20-60C
	Humidity		0-80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.78 kg
	Dimensions ( L x W x H )		21.00 x 8.70 x 5.50 cm
